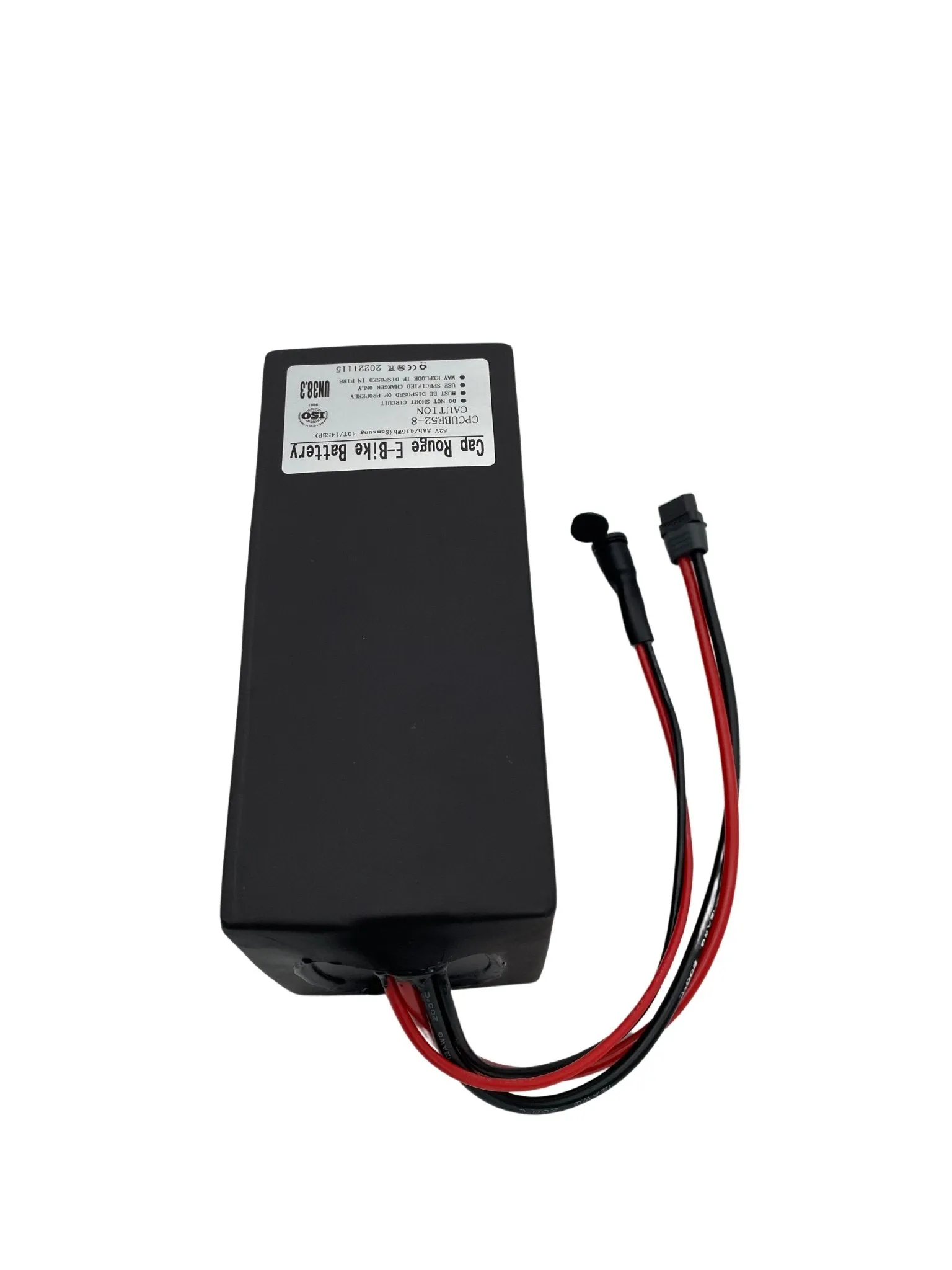

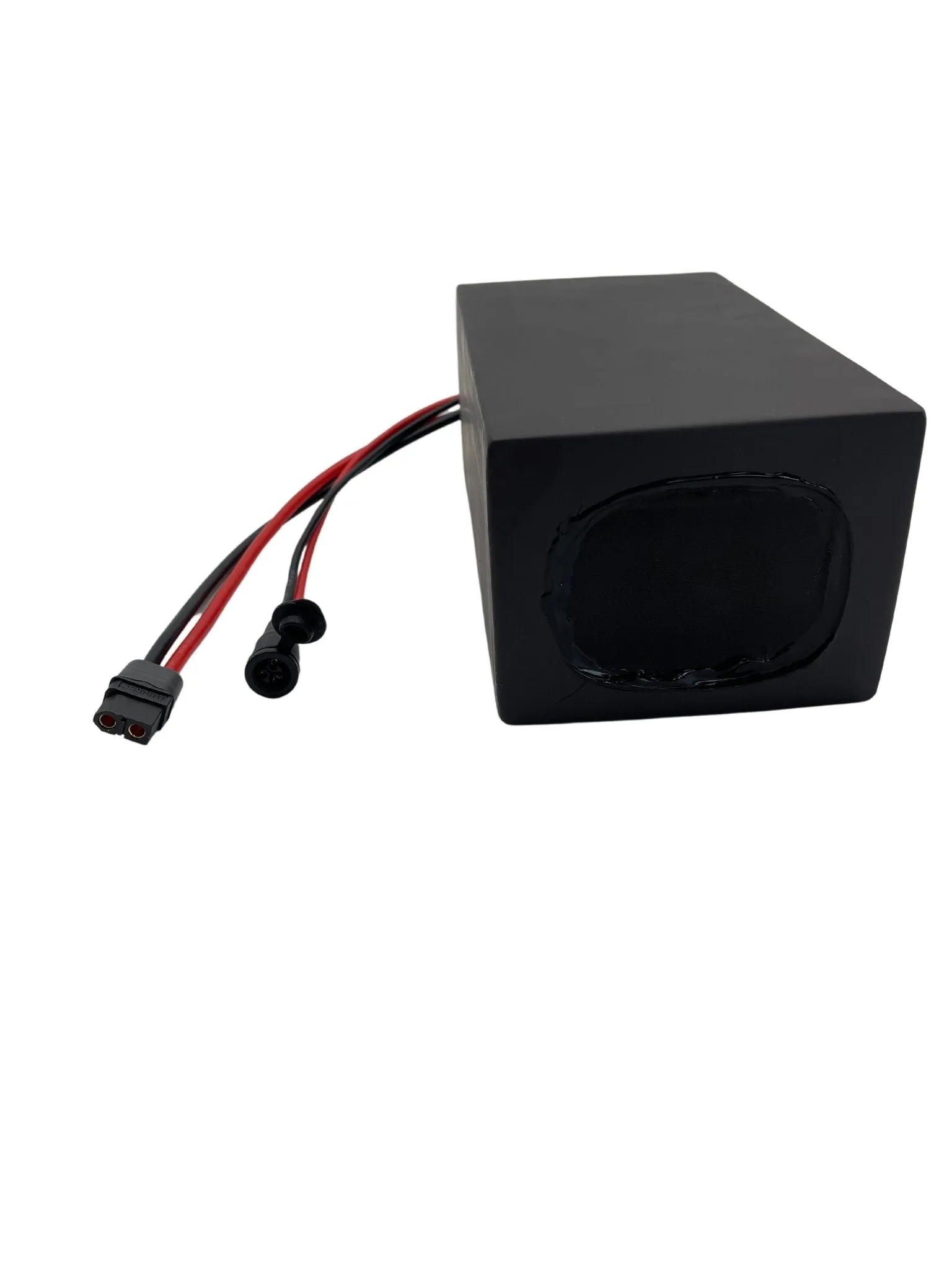

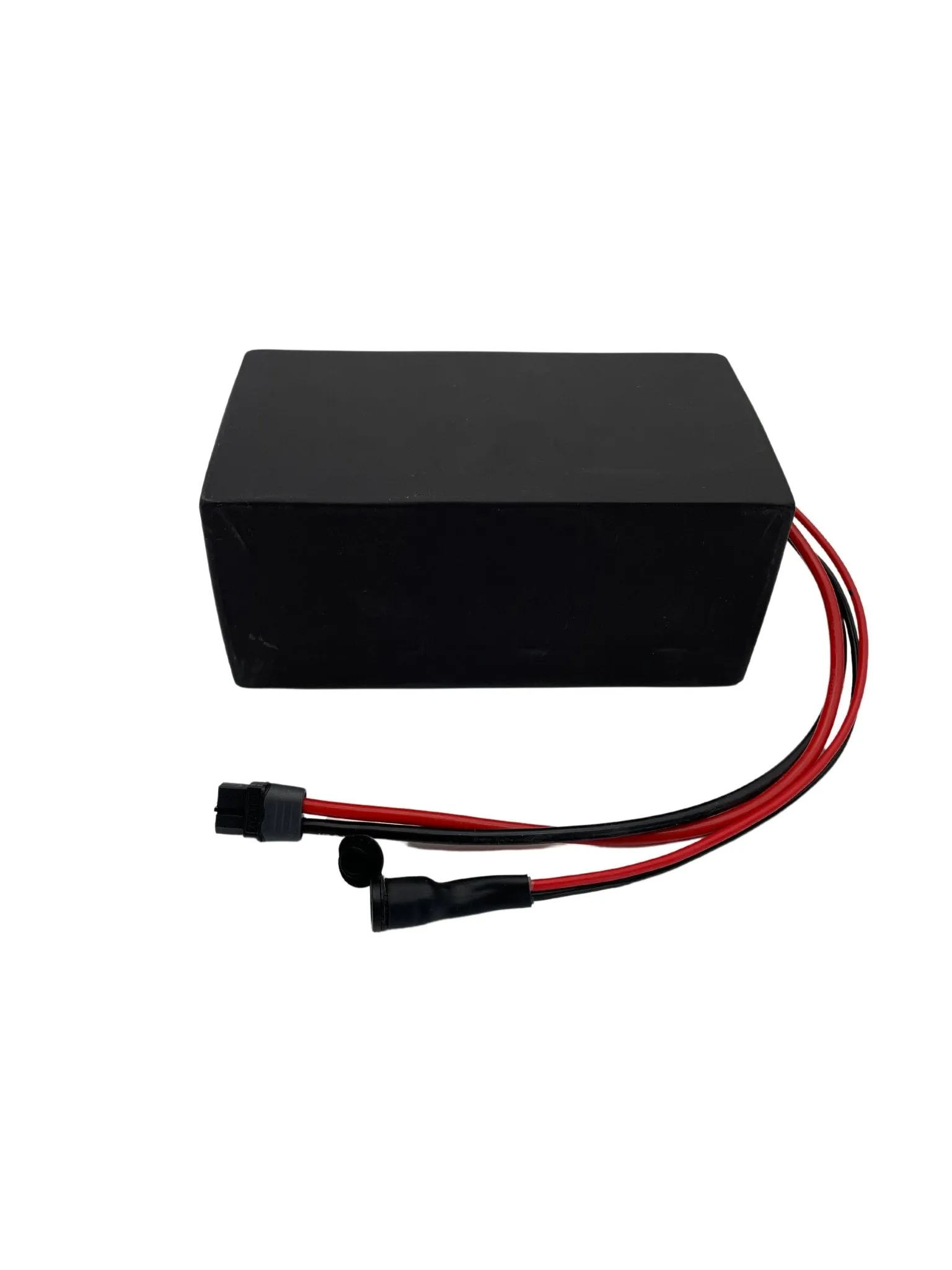

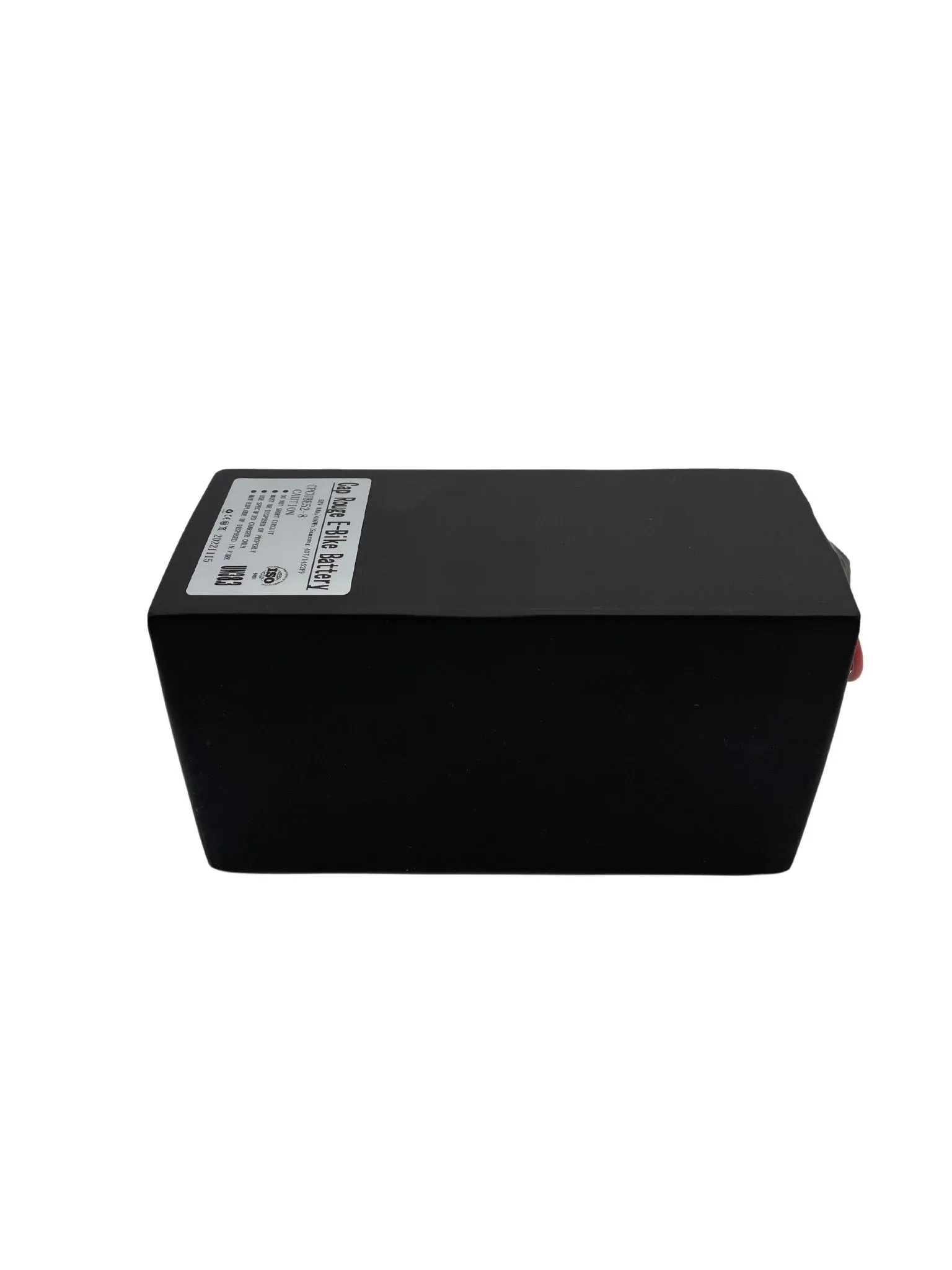

Mini Cube High Intensity e-Bike Battery

8 AH

416 Wh

High Discharge Samsung 40T 21700 Cells

50A Continuous Discharge BMS - For Motors Up To 2500 Watts

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

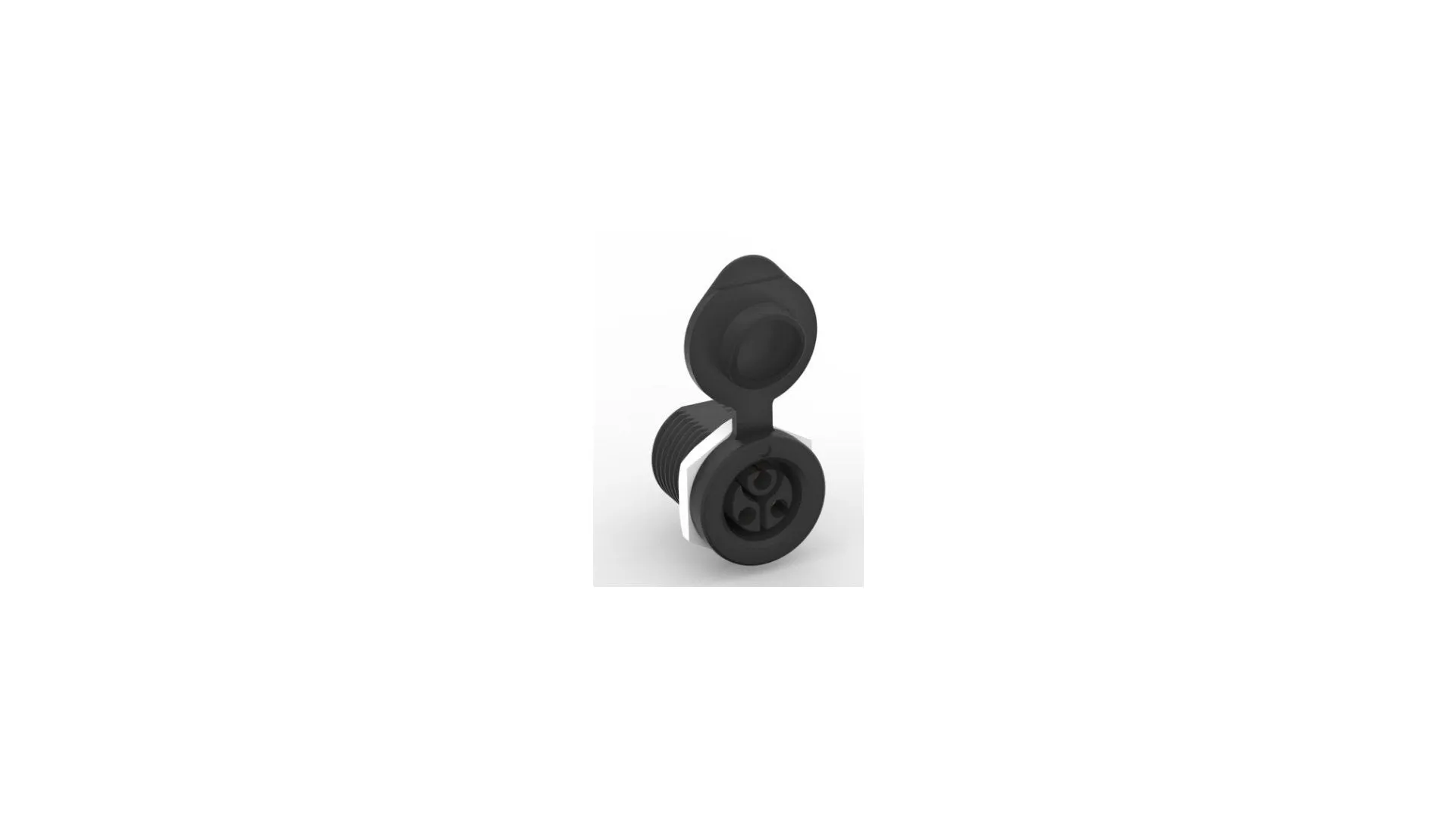

ST3 Charging Port - Cable 30cm

XT60 Discharge Port - Cable 30cm

Great For Backpacks!

Extra Layer Of High Grade Thick Rubber Shrink

Dimensions: L 160mm - W 72mm - H 100mm

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

Cube shaped battery, to suit a large number of bicycle frames, bags, backpacks or other applications

These packs can be used for smaller spacers and to save weight amongst many other uses.

• 52 Volt
• 8AH / 416 WH
• 4000Mah 21700 Samsung 40T cells, tested to EN62133-2-22017
• 14S2P
• Dimensions: L 160mm - W 72mm - H 100mm can be placed in any direction
• 50A continuous discharge for motors up to 2500W

• ST3 3 Pin charging port
• 1-5A, 2A, 3A, 4A Battery charger options
• 5A maximum charge input
• Weight 2.25 KGS
• Discharge cable with XT60 Female connector
• Extra durable black rubber outer casing
• Internal battery pack encased in protective case
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
